Product Feature

- All parts made off Stainless steel
- Large flow, large power range
- Unique impeller design can pass large particles
- Durable and corrosion resistant
- With cutting blade
- YE3 high-efficiency motor, protection grade IP68, Class F
- Urban drainage is available

Technical Parameters

- Inlet/Outlet range:DN50~DN150
- Flow range:10~140m³/h
- Head range:6~40m
- Max working pressure: 20 bar
- Liquid temperature:≤40°C

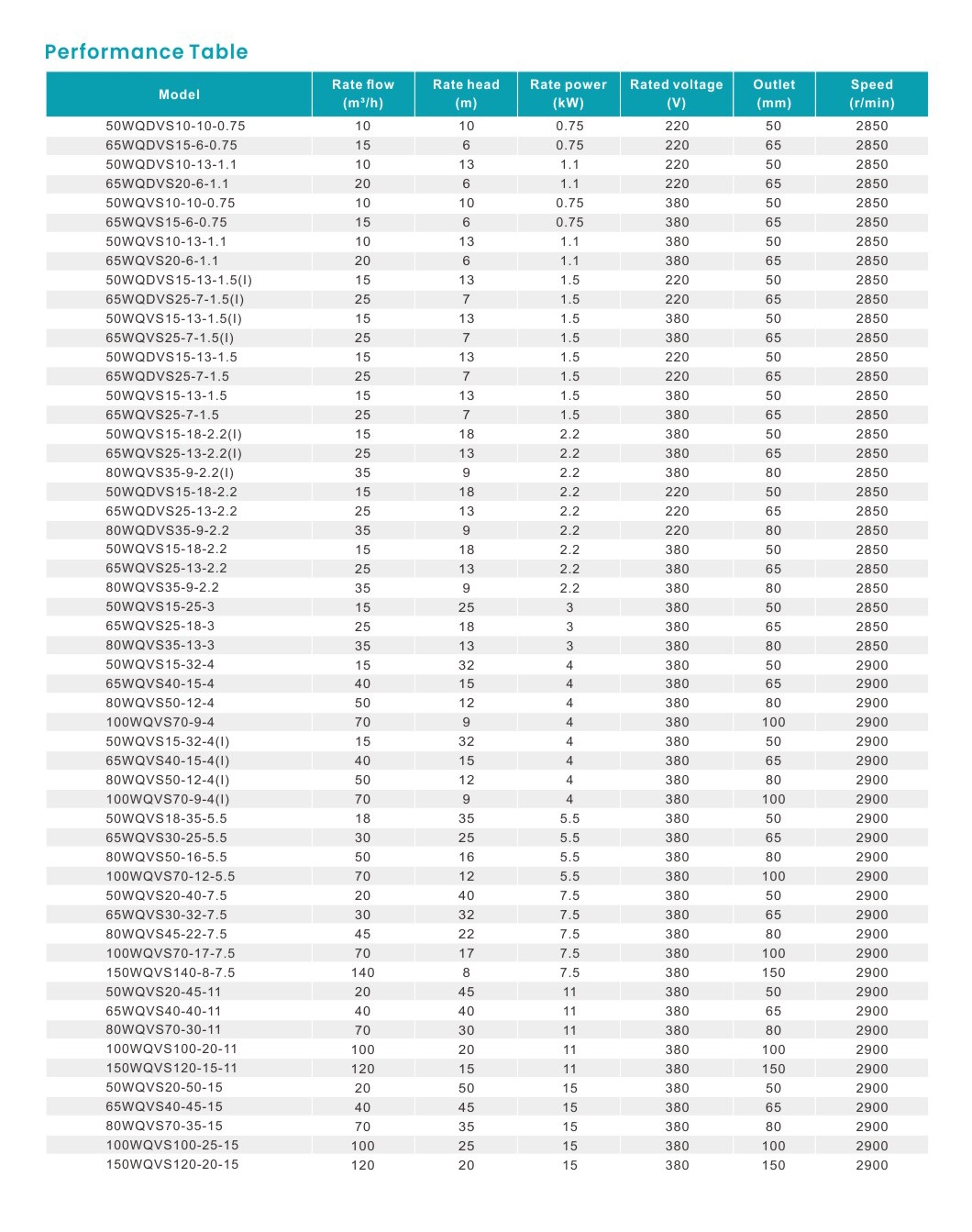

Technical table
curve

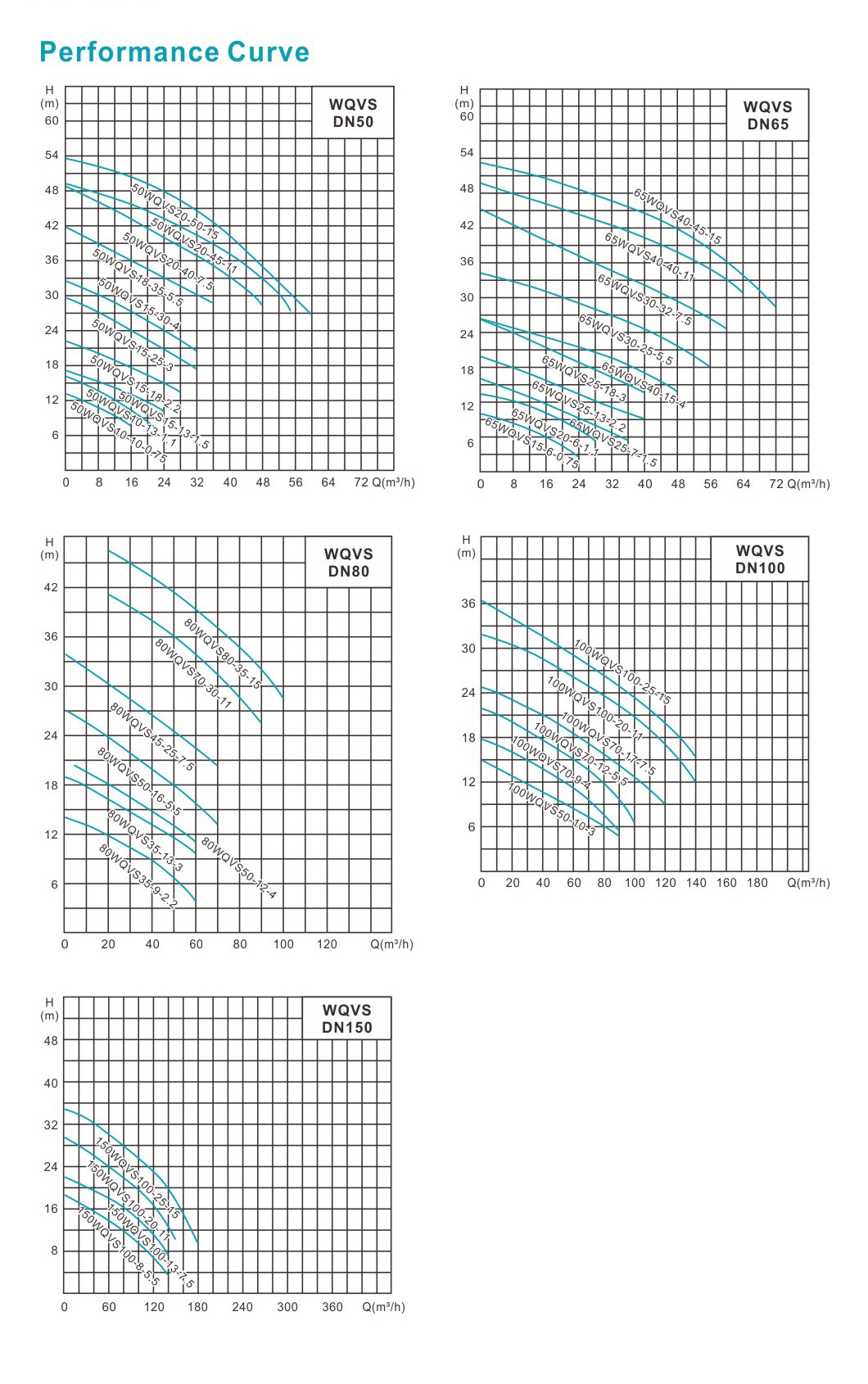

Performance Curve
curve
Material and dimension
MB_pic
