Product Feature

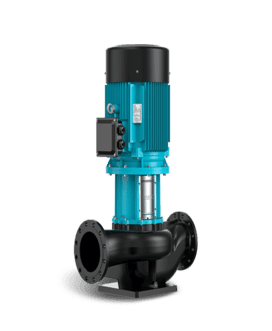

-Single stage centrifugal pump with inline design
-High temperature sealing, used for heating systems
-Easy to pull back from the motor for coupling design
-YE3 high-efficiency motor, protection grade IP55 , Class F
-Pump casing with anti-corrosion coating
-AISI 304 stainless steel shaft
-High quality bearings, wear-resistant mechanical seals

Technical Parameters

-Inlet/Outlet range:DN32~DN300
-Flow range:2~1200m³/h
-Head range:4~87m
-Max working pressure:12~16bar
-Liquid temperature:-15°C~120°C

Technical table

Product Range

No.	Model	Q[m³/h]	H[m]	n[r/min]	Standard motor voltage[V]
					1×220V P2[kW]	3×380V P2[kW]
1	AK32-14G/2	8	14	2900	0.75	0.75
2	AK32-18G/2	8	18	2900	1.1	1.1
3	AK32-21G/2	12.5	21	2900	1.5	1.5
4	AK32-26G/2	12.5	26	2900	2.2	2.2
5	AK32-33G/2	12.5	33	2900	3	3
6	AK32-40G/2	12.5	40	2900	4	4
7	AK32-50G/2	12.5	50	2900	5.5	5.5
8	AK40-14G/2	8	14	2900	0.75	0.75
9	AK40-16G/2	12.5	16	2900	1.1	1.1
10	AK40-20G/2	12.5	20	2900	1.5	1.5
11	AK40-26G/2	20	26	2900	2.2	2.2
12	AK40-33G/2	25	33	2900	3	3
13	AK40-40G/2	25	40	2900	4	4
14	AK40-36G/2	25	36	2900	5.5	5.5
15	AK40-48G/2	30	48	2900	7.5	7.5
16	AK50-32G/2	12.5	32	2900	3	3
17	AK50-39G/2	12.5	39	2900	4	4
18	AK50-49G/2	12.5	49	2900	5.5	5.5
19	AK50-60G/2	25	60	2900	7.5	7.5
20	AK50-70G/2	50	70	2900	11	11
21	AK50-81G/2	50	81	2900	15	15
22	AK65-15G/2	15	15	2900	2.2	2.2
23	AK65-20G/2	20	20	2900	3	3
24	AK65-22G/2	40	22	2900	4	4
25	AK65-30G/2	40	30	2900	5.5	5.5
26	AK65-34G/2	50	34	2900	7.5	7.5
27	AK65-41G/2	50	41	2900	11	11
28	AK65-55G/2	50	55	2900	15	15
29	AK65-61G/2	50	61	2900	18.5	18.5
30	AK65-85G/2	50	85	2900	30	30
31	AK80-13G/2	40	13	2900	3	3
32	AK80-18G/2	40	18	2900	4	4
33	AK80-23G/2	50	23	2900	5.5	5.5
34	AK80-29G/2	50	29	2900	7.5	7.5
35	AK80-32G/2	50	32	2900	11	11
36	AK80-38G/2	50	38	2900	15	15
37	AK80-47G/2	80	47	2900	18.5	18.5
38	AK80-54G/2	80	54	2900	22	22
39	AK80-67G/2	80	67	2900	30	30
40	AK100-9/2	9	9	2900	2.2	2.2
41	AK100-15/2	60	15	2900	4	4
42	AK100-17G/2	80	17	2900	5.5	5.5

Product Range

No.	Model	Q[m³/h]	H[m]	n[r/min]	Standard motor voltage[V]
					1×220V P2[kW]	3×380V P2[kW]
43	AK100-22G/2	80	22	2900	7.5	7.5
44	AK100-27/2	100	27	2900	11	11
45	AK100-33/2	100	33	2900	15	15
46	AK100-40G/2	100	40	2900	18.5	18.5
47	AK100-48G/2	120	48	2900	22	22
48	AK100-52/2	120	52	2900	30	30
49	AK125-11G/4	120	11	1450	5.5	5.5
50	AK125-14G/4	120	14	1450	7.5	7.5
51	AK125-19G/4	140	19	1450	11	11
52	AK125-22G/4	140	22	1450	15	15
53	AK125-28G/4	160	28	1450	18.5	18.5
54	AK125-32G/4	160	32	1450	22	22
55	AK125-40G/4	160	40	1450	30	30
56	AK125-48G/4	160	48	1450	37	37
57	AK150-12.5G/4	200	12.5	1450	15	15
58	AK150-17/4	200	17	1450	18.5	18.5
59	AK150-25/4	200	25	1450	22	22
60	AK150-33/4	200	33	1450	30	30
61	AK150-40/4	200	40	1450	37	37
62	AK200-15/4	300	15	1450	18.5	18.5
63	AK200-19/4	300	19	1450	22	22
64	AK200-23/4	300	23	1450	30	30
65	AK200-27/4	300	27	1450	37	37
66	AK200-32/4	300	32	1450	45	45
67	AK200-36/4	300	36	1450	55	55
68	AK200-47/4	300	47	1450	75	75
69	AK200-53/4	300	53	1450	90	90
70	AK250-16/4	500	16	1450	30	30
71	AK250-19/4	500	19	1450	37	37
72	AK250-22/4	500	22	1450	45	45
73	AK250-29/4	500	29	1450	55	55
74	AK250-36/4	500	36	1450	75	75
75	AK250-47/4	500	47	1450	90	90
76	AK250-56/4	500	56	1450	110	110
77	AK300-12.5/4	630	12.5	1450	30	30
78	AK300-14/4	630	14	1450	37	37
79	AK300-17/4	630	17	1450	45	45
80	AK300-20/4	630	20	1450	55	55
81	AK300-26/4	630	26	1450	75	75
82	AK300-32/4	630	32	1450	90	90
83	AK300-40/4	630	40	1450	110	110
84	AK300-50/4	900	50	1450	132	132
85	AK300-55/4	900	55	1450	200	200

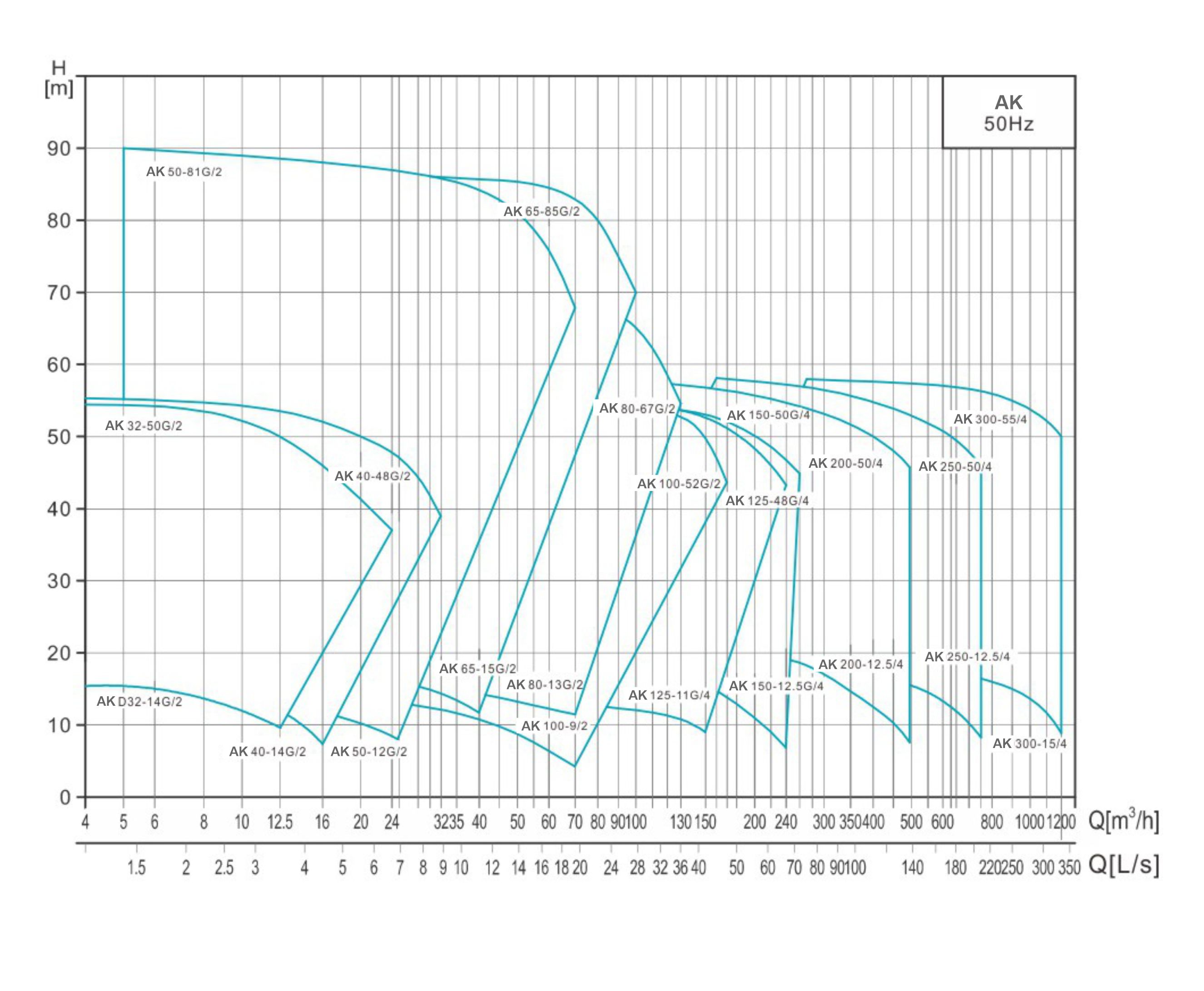

Performance Curve

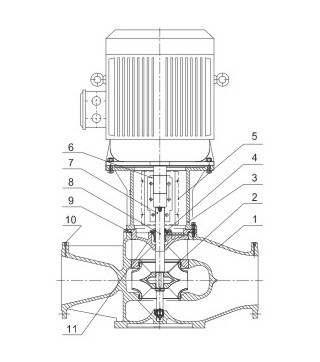

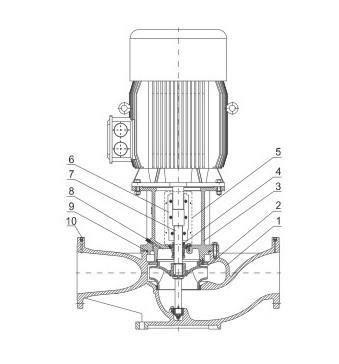

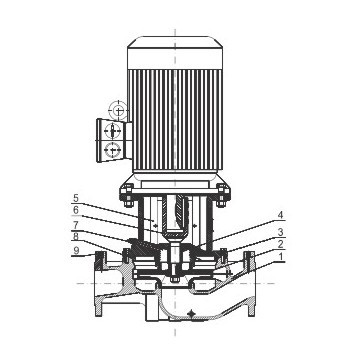

Material and dimension

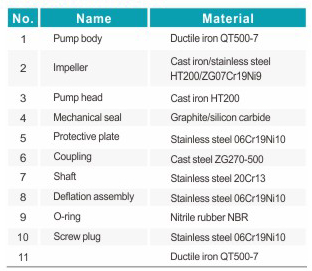

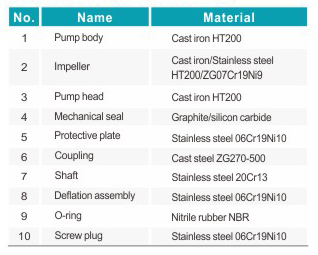

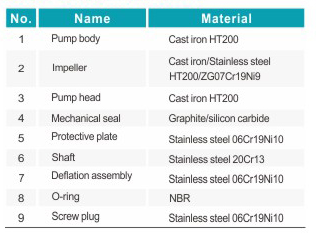

Material List
