Product Feature

-All wetted parts are made of SS304.
-Both square and round motors available
-YE3 high-efficiency motor, protection grade IP55 , Class F
-Can be used for domestic water
-High-quality bearing, wear-resistant mechanical seal

Technical Parameters

-Inlet/Outlet range:1"x1.25"
-Flow range:5~12m³/h
-Head range:14~ 22m
-Max working pressure: 20bar
-Liquid temperature:-10°C~90°C

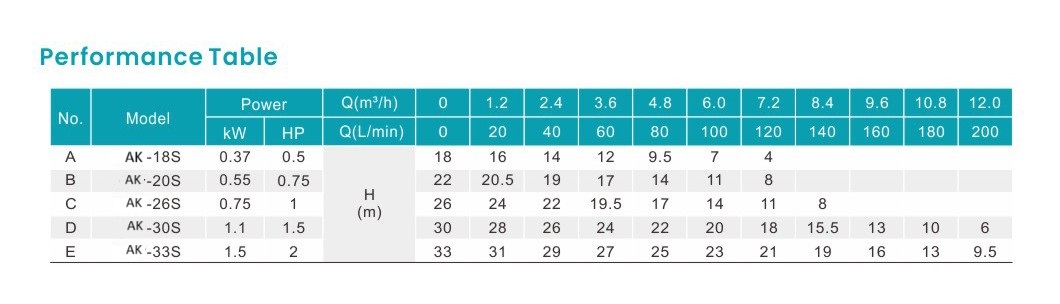

Technical table
curve
Performance Curve
curve
Material and dimension
MB_pic
