-Vertical single stage centrifugal pump for cooling water system
-Large flow, low noise and high stability
-High-quality machine seal to prevent water leakage from burning the machine
-YE3 high-efficiency motor, protection grade IP55 , Class F
-Anti-rust technology of electrophoretic coating for fuselage
-Equipped with a base plate for easy maintenance
-The impeller and pump shaft are made of stainless steel

-Inlet/Outlet range:DN65~DN150

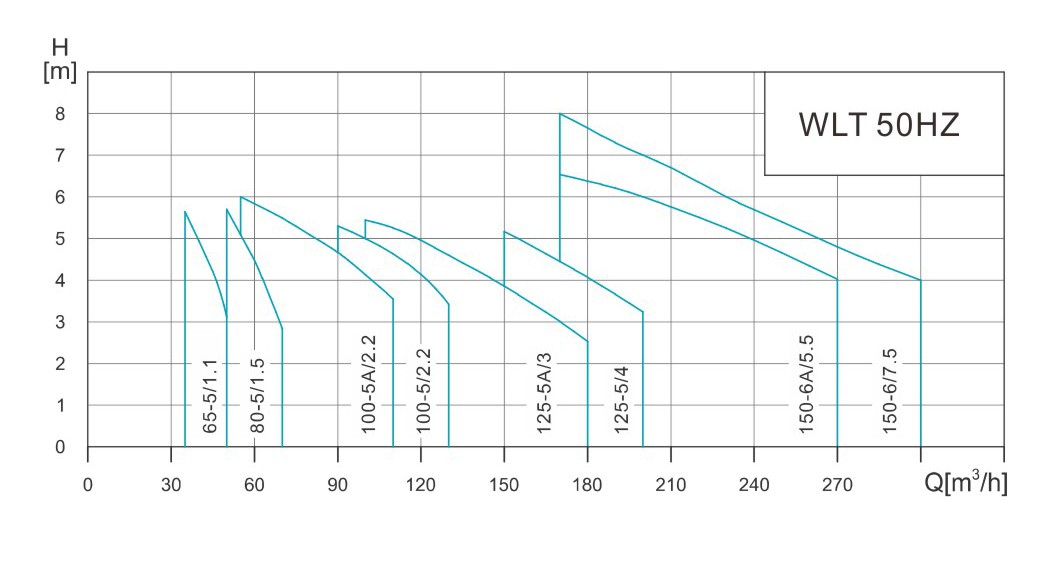

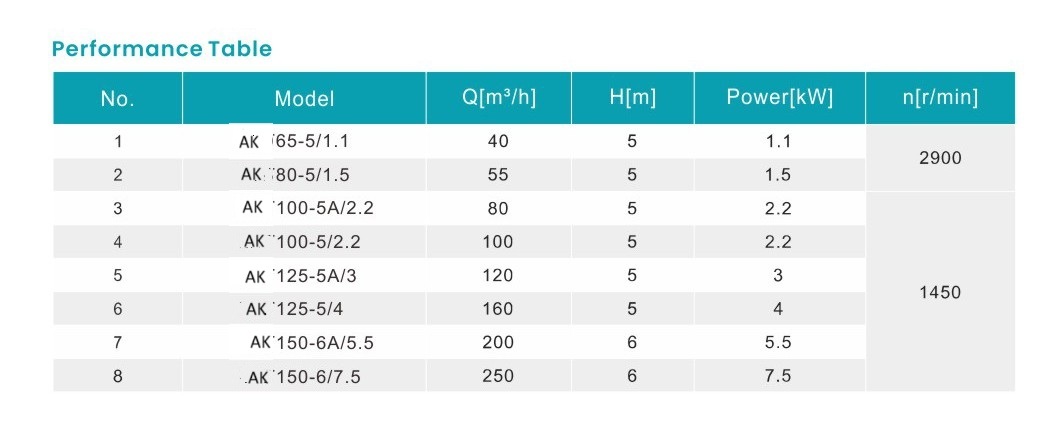

-Flow range:40~250m³/h
-Head range:5~ 6m
-Max working pressure: 6bar
-Liquid temperature:-15°C~110°C
