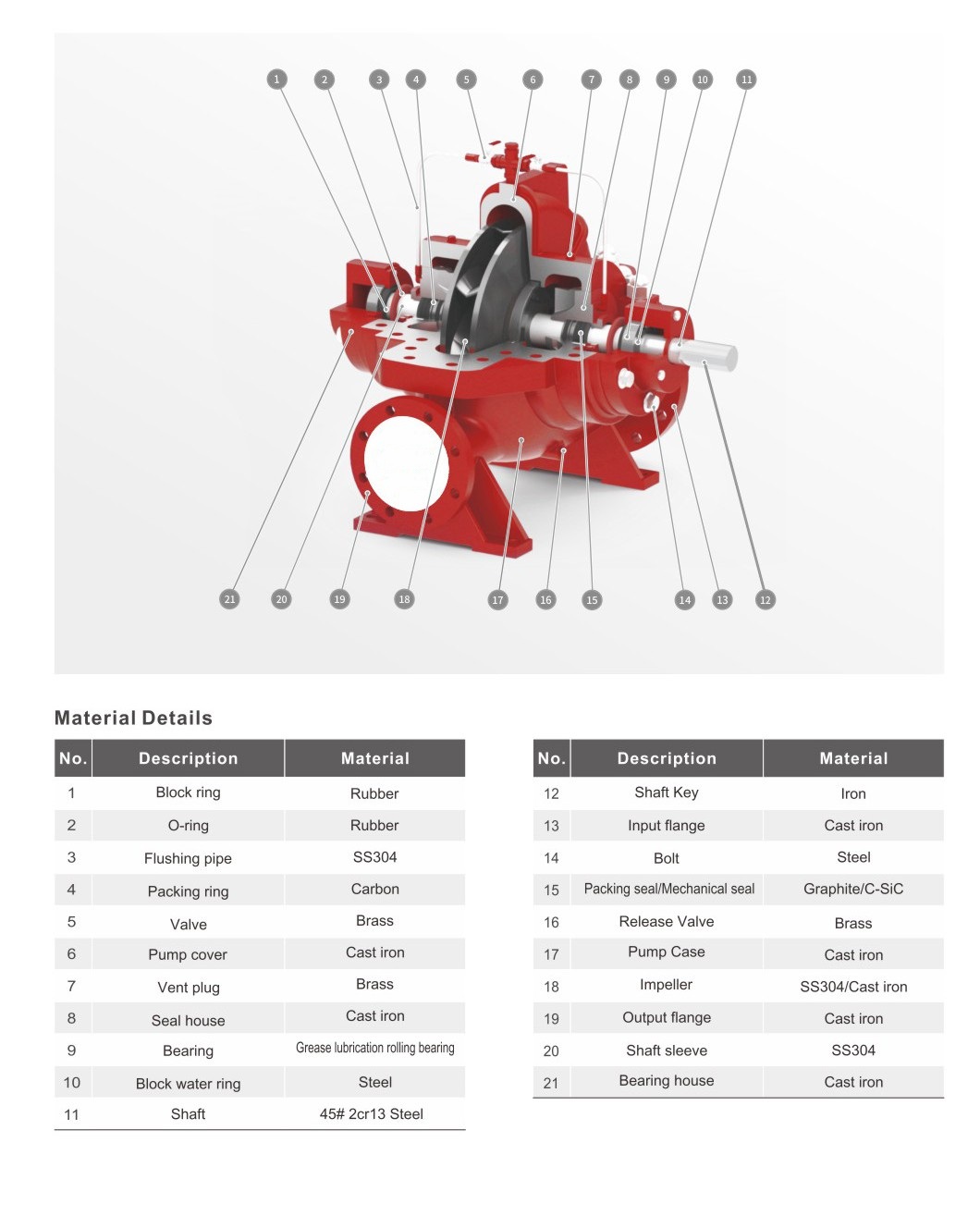

-Design of axial split volute pump casing
-Pump casing with anti-corrosion coating HT250
-Double inlet radial impeller in AISI 304 or HT250
-Shaft protection sleeve in sealed area
-Use packing for sealing
-Lubricating grease filled rolling element bearings
-Equipped with an electric motor or diesel engine

-Inlet/Outlet range:DN150~DN600

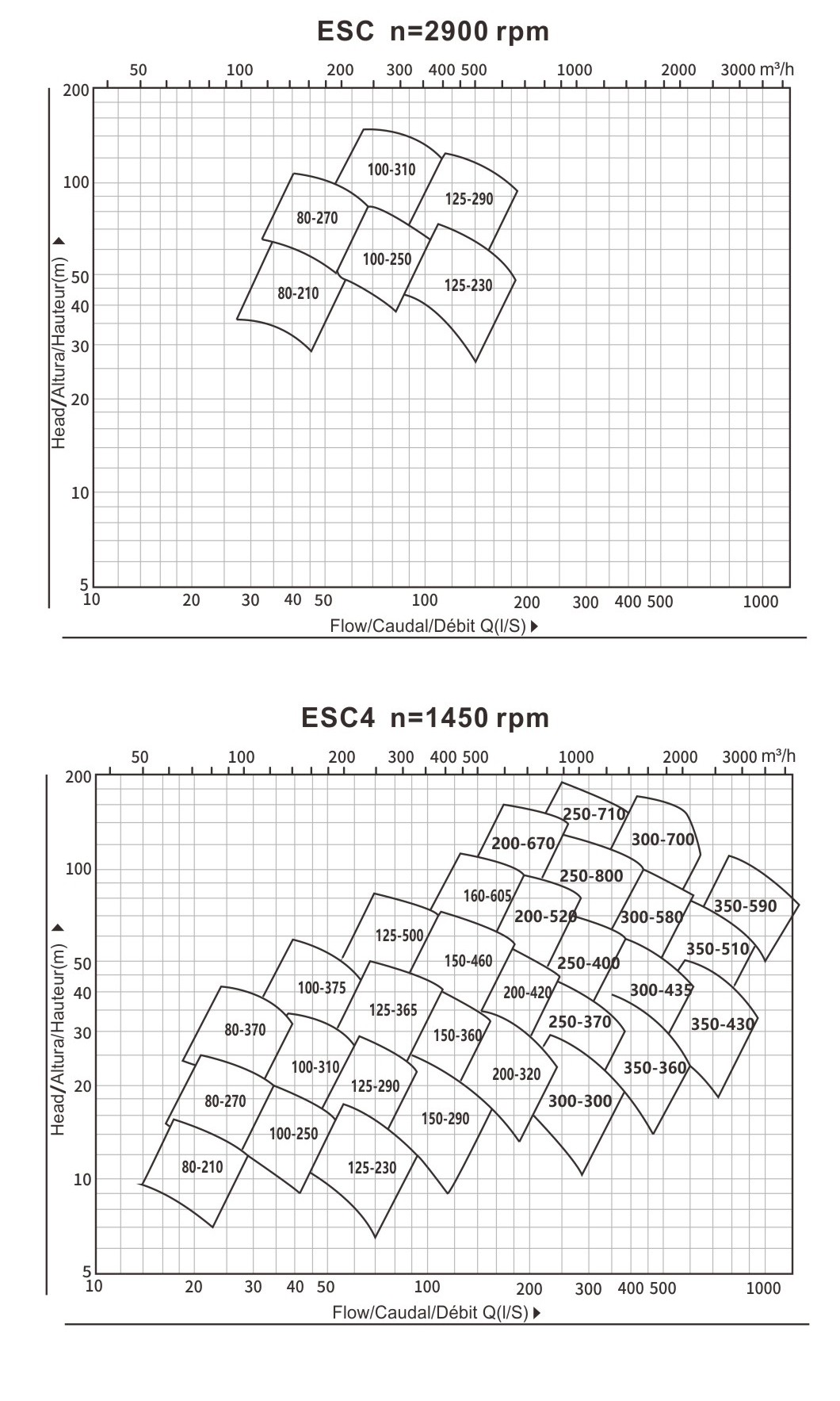

-Flow range:68~3975m³ / h
-Head range:6~ 230m
-Max working pressure: 25bar
-Liquid temperature:0°C~120°C
